Overview

Questions

Why interoperability is important when dealing with research data?
What are the three layers of interoperability?
How can you identify if a dataset is interoperable or not?

Objectives

Understand why interoperability matters in climate & atmospheric science
Recognize the 3 layers: structural, semantic, technical
Identify interoperable vs non-interoperable datasets

What is interoperability?

From the foundational article: The FAIR Guiding Principles for scientific data management and stewardship ¹

Three guiding principles for interoperability are:

I1. (meta)data use a formal, accessible, shared, and broadly applicable language for knowledge representation.
I2. (meta)data use vocabularies that follow FAIR principles
I3. (meta)data include qualified references to other (meta)data

Challenge

Assessing how interoperable a dataset is

You receive a dataset containing global precipitation estimates for 2010–2020. Its characteristics are:

Provided as an NetCDF file.
Variables have short, cryptic names (e.g., prcp, lat, lon).
Metadata uses inconsistent units (some missing).
Coordinates and grids are documented only in an accompanying PDF.
The dataset includes a persistent identifier (DOI) and references two external datasets used for validation.
No controlled vocabularies or community standards (e.g., CF, GCMD keywords) are used.

Based on the FAIR interoperability principles (I1–I3), how would you rate the interoperability of this dataset?

High interoperability — it uses a widely supported file format and includes references to other datasets.
Moderate interoperability — some technical elements exist, but semantic clarity and formal vocabularies are missing.
Low interoperability — metadata and semantic descriptions do not meet I1–I3 requirements.
Full interoperability — all three interoperability principles (I1, I2, I3) are clearly satisfied.

Show me the solution

Correct answer: B or C depending on the level of strictness, but for educational clarity, choose C.

I1: Not satisfied (no formal/shared language for knowledge representation; heavy reliance on PDF documentation).

I2: Not satisfied (no controlled vocabularies, no standards).

I3: Partially satisfied (qualified references exist, but insufficient context). => Overall, interoperability is low.

Identify the three layers of interoperability

These are properties that datasets must fulfilled in order to enable interoperability with the wider research ecosystem of APIs, notebooks, online viewers, etc.

Structural interoperability = representation

Structural interoperability ensures that data is organized, stored, and encoded in predictable, machine-actionable ways. This is achieved through:

common file formats
shared data models
consistent dimension and array structures

Examples include NetCDF, Zarr, and Parquet, which define how variables, coordinates, and metadata are stored. Structural interoperability allows tools across programming languages and platforms to read data consistently.

Semantic interoperability = meaning

Semantic interoperability ensures that data carries shared, consistent meaning across institutions and tools. This is achieved through:

standard vocabularies
controlled terms
variable naming conventions
units
coordinate definitions

Examples include Climate and Forecast (CF) standard names, attributes, and controlled vocabularies. Without semantic interoperability, datasets cannot be reliably interpreted, compared, or combined.

Technical interoperability = access

Technical interoperability ensures that data can be accessed, exchanged, and queried using standard, machine-readable mechanisms. This is achieved through:

APIs
remote access protocols
web services
cloud object storage interfaces

Examples include OPeNDAP, THREDDS and REST APIs. Technical interoperability enables automated workflows, cloud computing, and scalable analytics.

References

European Commission (Ed.). (2004). European interoperability framework for pan-European egovernment services. Publications Office.
European Commission. Directorate General for Research and Innovation. & EOSC Executive Board. (2021). EOSC interoperability framework: Report from the EOSC Executive Board Working Groups FAIR and Architecture. Publications Office. https://data.europa.eu/doi/10.2777/620649

Challenge

Reflect back on the three guiding principles for interoperability (I1–I3)(Think-Pair-Discuss):

I1. (meta)data use a formal, accessible, shared, and broadly applicable language for knowledge representation.
I2. (meta)data use vocabularies that follow FAIR principles
I3. (meta)data include qualified references to other (meta)data

Do they represent all the three layers of interoperability (structural, semantic, technical)? Explain your reasoning.

Show me the solution

FAIR’s interoperability principles emphasize semantic interoperability, addressed by controlled vocabularies and naming conventions, while structural and technical layers are insufficiently addressed.

For a domain like climate science, structural interoperability achieved by common data models and file formats (e.g. NetCDF files) as well as technical interoperability facilitated by machine-readable mechanisms (e.g.OPeNDAP protocol) matter enormously. For this, FAIR’s three guiding principles alone is not enough to guarantee practical interoperability.

Challenge

True/False or Agree/Disagree with discussion afterwards

“As long as data are open access, they are interoperable.”
“Metadata standards help ensure interoperability.”
“As long as data is using an open standard format is interoperable”

Show me the solution

F,T,F

Why to bother to make datasets interoperable?

Interoperability is key in research, specially in climate and atmospheric sciences, because researchers routinely work with multiple heterogeneous datasets that were never originally designed to work together. By ensuring that data are described consistently, stored in predictable structures, and accessed through standard mechanisms, interoperability makes it possible to combine and reuse data efficiently across research workflows.

First, interoperability enables data reuse: when datasets follow shared metadata conventions and formats, researchers can easily understand what variables represent, how they were produced, and how they can be used in new contexts. This avoids redundant effort and saves time across research groups.

Second, interoperability enables integration across sources, for example, combining model output with satellite observations, radar measurements, in-situ sensors, and reanalysis datasets. These data sources differ in resolution, structure, access method, and semantics; without shared standards, aligning them becomes difficult or impossible.

Third, interoperability reduces friction in data pipelines. Standardized formats, consistent metadata, and machine-actionable APIs allow workflows to run smoothly without manual cleaning, renaming, or restructuring. This is especially critical when handling large, frequently updated datasets typical in climate research.

Finally, interoperability is required for automation, AI, dashboards, and multi-disciplinary science. Machine learning pipelines, automated monitoring systems, and interactive applications rely on consistent, accessible, and machine-readable data. Without interoperability, these tools break or require extensive custom engineering.

In short, interoperability is what makes the diverse, high-volume data ecosystem of climate and atmospheric science usable, scalable, and scientifically trustworthy.

Key elements of interoperable research workflows

Interoperable research workflows rely on a set of shared practices, formats, and technologies that allow data to be exchanged, understood, and reused consistently across tools and institutions. In climate and atmospheric science, these elements form the backbone of scalable, reproducible, and machine-actionable data ecosystems.

Community formats (NetCDF, Zarr, Parquet) provide a common structural foundation.

These formats encode data in predictable ways, with clear rules about dimensions, variables, and internal structure. NetCDF remains the dominant community standard for multidimensional geoscience data, while Zarr offers a cloud-native representation suitable for large-scale, distributed computing. Parquet complements both by providing an efficient columnar format for tabular or metadata-rich data. Using community formats ensures that tools across languages and platforms can interpret datasets consistently.
Standardized metadata (CF conventions) provide the semantic layer needed for meaningful interpretation.

CF conventions define variable names, units, coordinate systems, and grid attributes so that datasets from different sources “speak the same language.” This allows climate model output, satellite observations, and reanalysis products to be aligned and compared reliably.
Stable APIs enable technical interoperability by providing machine-readable access to data and metadata.

APIs based on HTTP and JSON allow automated workflows, programmatic data publication, and integration between repositories, processing systems, and analysis tools. A stable, well-documented API ensures that downstream services and scripts continue to function even as data collections evolve.
Cloud-native layouts make large datasets scalable and performant.

By storing data as independent chunks in object storage, formats such as Zarr allow parallel, lazy, and distributed access, ideal for big climate datasets, serverless workflows, and AI pipelines. This ensures that even multi-terabyte archives can be streamed efficiently without requiring full downloads.

Together, these elements work as a coordinated system: community formats provide structure, metadata provides meaning, APIs provide access, and cloud-native layouts provide scalability.

Challenge

Real world barriers to data interoperability and reuse (Think-Pair-Discuss)

Think of a time when you tried to reuse a dataset that you did not produce. (5 minutes) What was the most significant barrier you encountered?

Pair discussion (5 minutes)

Share your experiences with your partner:

What specific interoperability challenges did you face (structural, semantic, technical)?
How did you try to overcome them?
Would adherence to FAIR I1–I3 principles have helped? If so, how?

Group debrief (5 minutes)

Discuss as a group:

Common obstacles
Whether these were structural, semantic, or technical
How such challenges could be prevented if data producers had designed the dataset with interoperability in mind (e.g., CF conventions, persistent identifiers, shared vocabularies, formal metadata languages)

Specific data challenges in the climate & atmospheric sciences

Heterogeneous data origins: Climate research integrates satellite retrievals, weather models, climate simulations, in-situ sensors, radar, lidar, aircraft measurements, and reanalysis datasets—each with its own structure, conventions, and processing workflows.
Different spatial and temporal resolutions: Satellite images may be daily or hourly at 1 km resolution, while climate models may provide monthly or daily outputs on coarse grids; combining them requires consistent metadata and alignment.
Multiple file formats and data models: Data may come as GRIB, NetCDF, GeoTIFF, HDF5, CSV, or Zarr, each with different structural assumptions that affect processing and interpretation.
Inconsistent metadata quality: Missing units, inconsistent variable names, unclear coordinate systems, or non-standard attributes are frequent issues—making semantic interoperability a major challenge.
Large data volume and velocity: Earth observation missions (e.g., Sentinel, GOES), reanalysis products (ERA5), and high-resolution climate simulations produce terabytes to petabytes of data, making efficient, interoperable access necessary.
Different access mechanisms and services: Data are distributed across portals using APIs, OPeNDAP servers, cloud object storage, FTP, THREDDS catalogs, proprietary download tools, or manual interfaces, requiring technical interoperability to automate workflows.
Versioning and reproducibility issues: Climate datasets evolve frequently (e.g., reprocessed satellite series, new CMIP6 versions), and without stable identifiers or catalog metadata, reproducibility becomes difficult across institutions.
Need for multi-model and multi-dataset comparisons: Studies such as model evaluation, bias correction, and data assimilation depend on aligning diverse datasets that were never originally designed to work together.

Challenge

Discuss with you peer:

Participants inspect a small dataset and answer:

SH

• What is its structure?

• What metadata does it have?

• How is it accessed?

Show me the solution

Participants should identify whether the dataset is interoperable based on the three layers discussed (structural, semantic, technical).

dataset 1: Interoperable

Structure: NetCDF format with clear dimensions and variables.
Metadata: CF-compliant attributes, standard names, units.
Access: OPeNDAP protocol for remote access.

dataset 2: Not interoperable

Structure: CSV files with ambiguous column headers.
Metadata: Lacks standardized metadata, unclear variable meanings.
Access: Manual download, no API or remote access.

dataset 3: Not interoperable

Structure: NetCDF format but missing CF compliance.
Metadata: Inconsistent or missing units, unclear variable names.
Access: OPeNDAP protocol

Key Points

Interoperability ensures that data can be understood, combined, accessed, and reused across tools, institutions, and workflows with minimal manual intervention.
Interoperability operates at three complementary layers:structural (how data is encoded and organized),semantic (how data is described and interpreted), and technical (how data is accessed and exchanged).
The FAIR interoperability principles I1–I3 primarily address the semantic layer. They provide essential guidance on shared metadata languages, vocabularies, and references, but they do not fully cover structural and technical interoperability.
In climate and atmospheric science, all three layers are required for practical reuse. Structural standards (e.g., NetCDF, Zarr), semantic conventions (e.g., CF), and technical mechanisms (e.g., APIs, OPeNDAP, THREDDS) must work together.
Many real-world barriers to reuse datasets (unclear metadata, missing units, inconsistent coordinate systems, incompatible file formats, unstable access mechanisms) are failures of one or more interoperability layers.
Interoperable research workflows rely on established community formats, standardized metadata conventions, stable access protocols, and scalable cloud-native layouts that allow large heterogeneous datasets to be aligned, streamed, and analysed consistently.
Interoperability is essential in climate science because datasets come from diverse sources (models, satellites, sensors, reanalysis) and must be combined into integrated analyses that are reproducible and machine-actionable.

Wilkinson, M. D., Dumontier, M., Aalbersberg, I. J., Appleton, G., Axton, M., Baak, A., … & Mons, B. (2016). The FAIR Guiding Principles for scientific data management and stewardship. Scientific data, 3(1), 1-9.↩︎

Content from Structural interoperability

Last updated on 2026-07-14 | Edit this page

Overview

Questions

What is structural interoperability, and what does it allow software to do?
How do data models, file formats, schemas, conventions, and access methods differ?
How can simple tabular formats such as CSV and TSV support reusable, machine-actionable data?
Which structural standards are appropriate for common climate and atmospheric data types?
What structural contract does the NetCDF data model provide?

Objectives

Explain structural interoperability as a shared, machine-actionable agreement about how data elements are organised and related.
Distinguish between a data model, encoding or file format, schema, community convention, and access method.
Evaluate the structural strengths and limitations of CSV/TSV, Parquet, NetCDF, Zarr, GRIB, and GeoTIFF.
Identify the additional information needed to make tabular data reliably reusable across tools.
Analyse a NetCDF dataset by identifying its dimensions, coordinate variables, data variables, attributes, and data types.

What is structural interoperability?

Structural interoperability concerns the organisation and representation of data: what kinds of data objects exist, how they are encoded, and how their relationships are expressed.

A dataset is structurally interoperable when different software tools can reliably:

open and parse it using a published specification;
locate records, columns, arrays, variables, coordinates, and metadata;
determine data types, shapes, dimensions, and relationships;
distinguish data values from missing or fill values;
validate the dataset against explicit rules; and
transform or subset it without relying on undocumented, dataset-specific assumptions.

A useful guiding question is: Can another tool determine how the dataset is organised and process that organisation without bespoke instructions from the person who created it?

This does not mean that a machine automatically understands the scientific meaning of every value. Structural interoperability makes the organisation machine-actionable; semantic interoperability addresses whether terms such as precipitation_flux, rainfall_rate, or DBZH are defined and interpreted consistently.

Structural interoperability is a contract, not a file extension

A file extension such as .csv, .nc, .tif, or .zarr is only a label. Structural interoperability depends on several related layers working together.

Layer	Question answered	Example
Data model	What kinds of objects exist, and how are they related?	Rows, columns, and cells; or dimensions, arrays, coordinates, and attributes
Encoding or format	How is that model represented as text or bytes?	Comma-delimited text, NetCDF binary encoding, Parquet column chunks
Schema	Which fields or variables are expected, with which types and constraints?	`station_id` is a required string; `temperature` is a number
Convention or profile	How should a community use the model and metadata consistently?	CF Conventions for NetCDF; CSVW metadata; Cloud Optimized GeoTIFF
Access method	How are the bytes or logical data objects retrieved?	Local file access, HTTP, OPeNDAP, object storage, HTTP range requests

These layers should not be treated as synonyms.

NetCDF defines a data model and one or more encodings.
CF Conventions add rules for describing scientific variables, coordinates, units, and grid mappings within that model (see this episode)
OPeNDAP is an access protocol that exposes remotely stored data for subsetting and retrieval.(see this episode)

Similarly, a CSV file defines a simple textual representation, but its structure becomes more reliable when a schema describes the columns, types, constraints, missing values, and dialect.

Callout

A useful test: can the structure be validated?

A structurally interoperable dataset should have enough explicit rules for a validator or reader to detect problems such as:

a missing required column;
a value with the wrong data type;
an array whose dimensions do not match its declared shape;
an undefined coordinate variable;
an invalid fill value;
inconsistent chunk metadata; or
missing georeferencing information.

If correct interpretation depends mainly on a README, an email, or knowledge held by the original researcher, the structural contract is incomplete.

Structural interoperability is about data models, not only formats

A data model defines the logical structure that software works with. Different scientific data types require different models.

Tabular model

A table consists of rows, columns, and cells. Each row normally represents one observation or entity, and each column represents one property.

Suitable formats include:

CSV and TSV for simple, portable tables;
Parquet for typed, column-oriented analytical tables; and
GeoPackage for standards-based geospatial tables, vector features, and tiles.

Multidimensional array model

A multidimensional dataset consists of arrays whose axes may represent time, latitude, longitude, height, range, ensemble member, or another dimension.

Suitable formats include:

NetCDF for self-describing array-oriented scientific datasets;
Zarr for chunked arrays stored across filesystems or object storage; and
GRIB for highly standardised operational meteorological fields.

Raster model

A raster represents values on a regular grid of pixels or cells. Geospatial rasters also need a defined relationship between the grid and a coordinate reference system.

Suitable formats include:

GeoTIFF for georeferenced raster data; and
Cloud Optimized GeoTIFF (COG), which adds layout requirements that support efficient partial access over HTTP.

Choosing a widely recognised format that matches the underlying data model allows existing tools to reuse the data with fewer transformations. Converting a multidimensional climate cube into a flat CSV may technically preserve values, but it discards or obscures relationships among dimensions, coordinates, and variables. Conversely, storing a small two-column lookup table in NetCDF may add unnecessary complexity.

CSV and TSV: portable, but not automatically self-describing

CSV and TSV are important interoperability formats because they are plain text and are supported by spreadsheets, databases, statistical packages, command-line tools, and most programming languages. RFC 4180 documents a commonly used CSV syntax and the text/csv media type, but it does not define a complete type system, scientific metadata model, or table schema.

For example:

station_id,timestamp,air_temperature
NL001,2026-07-13T12:00:00Z,18.4
NL001,2026-07-13T13:00:00Z,18.8

Most tools can recognise this as a table. However, the file alone may not tell a reader:

whether the delimiter is a comma, semicolon, or tab;
which character encoding is used;
whether the first row is a header;
whether decimal commas or decimal points are used;
whether timestamp is UTC and which date-time syntax it follows;
whether air_temperature is text, an integer, or a floating-point number;
which unit is used;
whether an empty cell, NA, -999, or another token represents missing data;
whether station_id must be unique or refer to another table; or
whether each row represents one observation, one station, or one summary period.

CSV therefore provides syntactic portability, but only a limited structural contract. Structural interoperability improves when the producer also provides:

a fixed and documented dialect: delimiter, quote character, encoding, decimal mark, and line endings;
a single header row with stable, machine-friendly column names;
consistent numbers of fields in every row;
explicit data types and constraints;
an unambiguous missing-value policy;
standard date and time representations;
stable identifiers and declared relationships between tables; and
a machine-readable schema, for example using W3C CSV on the Web or a Frictionless Table Schema.

TSV uses a tab as the delimiter but has the same fundamental strengths and limitations. The delimiter changes; the underlying tabular data model does not.

Comparing structural formats for different data types

Format or standard	Primary data model	Structural strengths	Important limitation or additional requirement
CSV / TSV	Rows, columns, cells	Human-readable, simple, broadly supported	Types, missing values, units, dialect, and relationships are usually not encoded unless a schema or profile is supplied
Parquet	Typed, column-oriented tables, including nested fields	Stores a schema and physical types; supports efficient column selection, filtering, encoding, and compression	Scientific meaning, units, coordinate reference systems, and domain constraints still need metadata conventions
NetCDF	Named multidimensional variables, dimensions, and attributes	Self-describing array structure; variables can share dimensions; broad scientific tooling	NetCDF alone does not ensure consistent scientific meaning or coordinate conventions; CF or another convention is often needed
Zarr	Hierarchies of chunked, typed N-dimensional arrays and groups	Explicit shape, type, fill value, chunk grid, codecs, and storage-independent access	Core metadata permits flexible user attributes; dimension naming and scientific coordinate relationships still require conventions and application agreements
GRIB2	Message-oriented gridded meteorological fields	Strict templates and WMO code tables enable operational exchange among meteorological systems	Highly specialised and less convenient for arbitrary research metadata or multi-variable exploratory datasets
GeoTIFF	Georeferenced raster grid	Encodes raster organisation and georeferencing in a standard TIFF structure	Metadata beyond raster and georeferencing may require additional conventions or sidecar information
COG	GeoTIFF plus an access-oriented layout profile	Enables efficient partial reads over HTTP using internal tiling, overviews, and byte-range requests	It is a profile of GeoTIFF, not a substitute for meaningful scientific metadata
GeoPackage	Standardised SQLite tables for vector features, tiles, rasters, and metadata	Defines required tables, integrity constraints, coordinate reference system tables, and extension rules	Best suited to geospatial features and tiles rather than large multidimensional climate arrays

Callout

A richer container is not automatically more interoperable

HDF5 can represent highly complex hierarchies, arrays, and metadata, but it permits many possible organisational patterns. Two HDF5 files can therefore use entirely different internal structures.

NetCDF-4 uses HDF5 as an underlying storage technology but constrains it through the NetCDF enhanced data model. This illustrates why a storage container alone is not enough: tools need a shared model and rules for how the container is used.

Challenge

Which structural contract is missing? (Think-Pair-Discuss)

For each case below, identify what a general-purpose tool can already determine and what additional structural information is needed.

rainfall.csv contains the columns station, date, and value.
radar.h5 contains several groups and arrays but no published schema or convention.
temperature.nc contains dimensions, variables, and attributes but does not declare a metadata convention.
satellite.tif contains image pixels but no coordinate reference system or geotransform.
forecast.zarr contains chunked arrays with shapes and data types, but the relationships among arrays are not documented.

Show me the solution

1. rainfall.csv

A reader can usually identify rows and columns. It still needs an explicit dialect, data types, date format, units, missing-value rules, and the meaning and uniqueness constraints of station. A CSVW or Frictionless schema could provide much of this information.

2. radar.h5

The HDF5 library can inspect groups, datasets, shapes, and stored attributes. It cannot assume what those objects represent or how they relate. A shared application schema, convention, or data model is needed.

3. temperature.nc

A NetCDF reader can determine variables, dimensions, shapes, types, and attributes. It may still be unable to identify latitude, longitude, time, vertical coordinates, grid mappings, or standard scientific quantities reliably. Declaring and following CF Conventions would strengthen interoperability.

4. satellite.tif

An image reader can decode the pixel grid, but a geospatial tool cannot place it correctly on Earth without georeferencing. GeoTIFF tags should declare the coordinate reference system and the transformation from pixel coordinates to geographic or projected coordinates.

5. forecast.zarr

A Zarr implementation can find arrays, decode chunks, and determine shape and data type. An application-level convention is still needed to identify coordinate arrays, shared dimensions, scientific variables, units, and grid mappings consistently.

NetCDF: a data model for multidimensional scientific data

NetCDF is a family of data formats and software libraries built around a shared model for array-oriented scientific data.

The classic NetCDF data model contains three central elements:

Dimensions are named axes with a length, such as time, latitude, longitude, height, or range.
Variables are typed N-dimensional arrays whose shapes are defined by one or more dimensions.
Attributes are small metadata values attached either to a variable or to the dataset as a whole.

The enhanced NetCDF-4 data model adds groups, additional data types, multiple unlimited dimensions, and user-defined types.

A NetCDF file consists of dimensions, variables, and attributes

What NetCDF makes machine-actionable

A NetCDF reader can inspect:

the names and lengths of dimensions;
the names, data types, and shapes of variables;
which dimensions are shared by multiple variables;
variable-level and global attributes;
fill values and storage encodings; and
in NetCDF-4, groups and chunking information.

For example, the declaration

float air_temperature(time, latitude, longitude)

states that air_temperature is a three-dimensional floating-point array and that its axes are related to the dimensions time, latitude, and longitude.

What NetCDF does not guarantee by itself

NetCDF permits attributes to be added, but it does not require every producer to use the same names or scientific conventions. A file can be valid NetCDF while still using:

ambiguous variable names;
missing or non-standard units;
unclear coordinate relationships;
undocumented grid mappings; or
inconsistent missing-value practices.

For climate and atmospheric data, CF Conventions define additional rules for identifying coordinate variables, auxiliary coordinates, standard names, units, grid mappings, cell bounds, and other scientific metadata.

Therefore:

NetCDF provides the structural container and core array data model; CF provides a more specific community contract for using that structure.

Other structural standards in climate and atmospheric workflows

Zarr: chunked arrays across storage systems

Zarr represents arrays and groups in a hierarchy. Its metadata describes array shape, data type, fill value, chunk grid, chunk-key encoding, and codecs. The chunks and metadata can be stored in a local directory, an object store, or another key-value store.

This supports:

independent retrieval of chunks;
lazy and parallel computation;
cloud and distributed storage; and
access without downloading an entire dataset.

Zarr provides a strong storage-level structural contract. However, arbitrary user attributes are allowed, and dimension names may be omitted. Climate workflows therefore still depend on conventions used by libraries such as xarray and, where appropriate, CF-compatible metadata practices.

Parquet: typed, column-oriented tables

Apache Parquet is designed for efficient storage and retrieval of tabular and nested data. It records a schema and physical data types, stores values by column, and supports compression and selective reads.

It is well suited to:

station observations;
event and trajectory records;
large time-series tables;
metadata catalogues; and
analytical queries that select a subset of columns or rows.

Parquet provides stronger typing than CSV, but domain metadata such as units, quality flags, controlled variable names, and coordinate reference systems still needs an agreed convention.

GRIB2: operational meteorological fields

GRIB2 is maintained through the WMO Manual on Codes. It represents gridded meteorological fields using standard message sections, templates, parameters, levels, time-processing information, and code tables.

Its strict structure is valuable for operational exchange because receiving systems can decode forecast and analysis fields using WMO-managed templates and identifiers. The same specialisation can make GRIB less flexible for research datasets that require extensive custom metadata or many related variables in one exploratory dataset.

GeoTIFF and COG: georeferenced rasters

GeoTIFF defines requirements for storing georeferencing and geocoding information inside TIFF files. This allows GIS and remote-sensing tools to interpret both the pixel grid and its location in a coordinate reference system.

Cloud Optimized GeoTIFF adds an internal organisation suitable for efficient remote access. Tiling, overviews, and byte ordering allow clients to request only the parts needed for a particular spatial window or resolution.

COG demonstrates that structural interoperability can include not only logical data organisation, but also a standardised physical layout that enables predictable access behaviour.

Challenge

Identify the structural elements in a NetCDF dataset

Open the OPeNDAP inspection page for the IDRA dataset:

IDRA raw data, 2 January 2019

Identify:

the global attributes;
the dimensions and their lengths;
the coordinate variables;
three data variables and their dimensions;
the data types of those variables;
one variable-level attribute that controls the interpretation of missing data; and
any variables that store metadata as data values rather than as global attributes.

Show me the solution

1. Global attributes

The dataset-level attributes include:

title
institution
history
references
Conventions
location
source
example

The Conventions attribute declares CF-1.4. This is a claim that the file follows a specific community convention; conformance should still be checked rather than assumed solely from the declaration.

2. Dimensions

The OPeNDAP Data Descriptor Structure shows the following dimensions:

time_raw_data = 73728
sample_beat_signal = 1024
time_processed_data = 144
range = 512
scalar = 1

3. Coordinate variables

The variables whose names match their dimensions are:

time_raw_data(time_raw_data)
sample_beat_signal(sample_beat_signal)
time_processed_data(time_processed_data)
range(range)

The scalar dimension does not have a variable named scalar; it is used as a length-one dimension by several scalar-valued variables.

4. Example data variables and dimensions

i_hh(time_raw_data, sample_beat_signal)
noise_power_horizontal(range)
equivalent_reflectivity_factor(time_processed_data, range)
radial_velocity(time_processed_data, range)
azimuth_processed_data(time_processed_data)

5. Example data types

i_hh is stored as a 16-bit integer.
time_processed_data is stored as a 64-bit real number.
equivalent_reflectivity_factor is stored as a 32-bit real number.
range is stored as a 32-bit integer.

6. Missing-data attribute

Several processed radar variables, including equivalent_reflectivity_factor, differential_reflectivity, radial_velocity, and spectrum_width, declare:

_FillValue: -999.0

The location and type of _FillValue are structural. Whether missing observations should be excluded, interpolated, or interpreted in another way is part of the analytical workflow.

7. Metadata stored as variables

The dataset also contains string variables such as:

iso_dataset
product
station_details

These are variables containing structured descriptive text. They should not be confused with the global attributes shown at the top of the OPeNDAP page.

The file is structurally inspectable because software can identify named dimensions, typed variables, shared axes, and attached attributes. However, its usefulness across workflows also depends on how consistently the declared CF convention and variable metadata are applied.

Callout

Can Ash compare two radar files from different years?

Ash wants to compare two IDRA radar datasets: one from 27 April 2009 and one from 2 January 2019.

Both are NetCDF datasets from the same radar system and are available through OPeNDAP. These shared technologies make them easier to inspect with the same tools, but they do not prove that the files are structurally equivalent.

Ash should compare the following structural properties before combining them:

variable names and data types;
dimensions, dimension order, and lengths;
coordinate variables and coordinate values;
fill values and missing-data encodings;
units and scaling attributes;
declared metadata conventions;
variables available in one file but absent from the other; and
whether the same logical quantity is represented by compatible arrays.

For example, two variables can both be named radial_velocity but still differ in dimension order, units, fill values, or coordinate grids. Conversely, two structurally compatible variables can use different names and require an explicit renaming step.

This comparison exposes three separate questions:

Technical interoperability: Can the same tools and protocol open both datasets?
Structural interoperability: Do the arrays, dimensions, coordinates, types, and metadata locations follow compatible rules?
Semantic interoperability: Do the variables represent comparable physical quantities, units, reference systems, and measurement procedures?

Structural interoperability reduces the amount of custom code needed to answer these questions, but it does not remove the need for scientific judgement.

Key Points

Structural interoperability is a shared contract about how data objects are organised, encoded, related, typed, and validated.
A file extension alone does not provide that contract.
Data models, encodings, schemas, conventions, and access methods play different roles and should not be treated as synonyms.
CSV and TSV are broadly portable but weakly self-describing; explicit dialects and machine-readable schemas make them substantially more interoperable.
The most appropriate structural format depends on the data model: tables, multidimensional arrays, meteorological messages, rasters, or geospatial feature collections.
Rich containers such as HDF5 do not guarantee interoperability unless communities agree on how their internal structures are used.
NetCDF provides a shared multidimensional array data model; CF Conventions provide additional rules for climate and forecast metadata.
Zarr standardises chunked array storage, while additional conventions are still needed to express scientific relationships consistently.
Open specifications, independent implementations, validation, versioning, and transparent extension rules support long-term interoperability.
Structural interoperability makes data machine-actionable, but semantic interoperability is still required to determine whether scientific quantities are meaningfully comparable.

Content from Semantic interoperability

Last updated on 2026-07-16 | Edit this page

Overview

Questions

What is semantic interoperability, and which kinds of meaning must be made explicit?
Why can two structurally similar datasets still be scientifically incompatible?
What is the difference between a label, a controlled vocabulary, a code list, and an ontology?
Where can researchers discover, evaluate, and share semantic artefacts for the Earth sciences?
How do the CF Conventions encode the meaning and context of climate and atmospheric data?
Is using the same CF standard_name sufficient to make two variables directly comparable?
What does it mean for a NetCDF file to conform to a particular version of the CF Conventions?

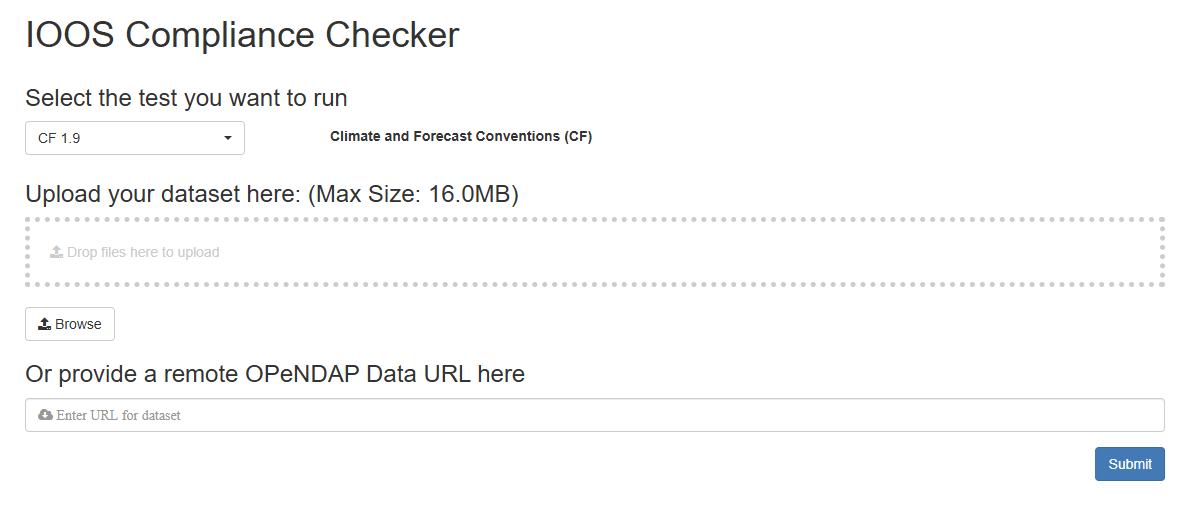

What can—and what cannot—a CF compliance checker establish?

Objectives

By the end of this episode, learners will be able to:

distinguish structural interoperability from semantic interoperability;
identify the semantic information needed to interpret and compare scientific variables;
distinguish free-text labels from controlled vocabulary terms and formally defined relationships;
use an Earth-science semantic-artefact catalogue to discover and critically assess relevant ontologies and vocabularies;
explain how CF standard names, units, coordinates, bounds, grid mappings, and cell methods work together;
evaluate whether two variables with similar names are semantically and scientifically comparable;
interpret CF compliance-checker findings critically, including version mismatches and tool limitations; and
identify semantic gaps in the IDRA radar datasets that may need harmonisation before comparison.

What is semantic interoperability?

Semantic interoperability concerns shared and explicit meaning.

A dataset is semantically interoperable when different people and software systems can interpret its variables, categories, relationships, and measurement context consistently because those meanings are expressed using documented, community-agreed terms and rules.

A useful guiding question is:

Can another researcher or software tool determine what the values represent, under which conditions they were produced, and how they relate to other data without relying mainly on tacit knowledge?

This definition does not require every explanation to be written directly inside one file. Meaning may also be expressed through persistent identifiers that resolve to external vocabularies, code lists, specifications, instruments, methods, or provenance records. What matters is that the references and relationships are explicit and machine-actionable rather than hidden in personal knowledge, filenames, or informal documentation.

Semantic interoperability supports questions such as:

What physical quantity is represented?
What entity, medium, or phenomenon does the quantity concern?
What is the direction or reference frame?
At which height, depth, pressure level, or location was it observed?
Does each value represent a point measurement, mean, sum, minimum, maximum, or another statistic?
Over which spatial or temporal interval was it calculated?
Which calendar, coordinate reference system, or vertical datum is used?
Which quality flag, uncertainty estimate, instrument, or processing step applies?
Are two variables equivalent, convertible, related, or fundamentally different?

Structure and meaning are different—but connected

Structural interoperability and semantic interoperability address different questions.

Question	Primarily structural	Primarily semantic
Does a variable exist, and what is its data type?	✓
Which dimensions does the variable use?	✓
Where is the `units` attribute stored?	✓
What physical quantity does the variable represent?		✓
Is `K` dimensionally compatible with `degC`?		✓
Does `time: mean` describe an average rather than an instantaneous value?		✓
Which coordinate variable applies to a data variable?	✓	✓
Does a height coordinate refer to metres above ground, sea level, or another reference surface?		✓
Is a quality-control variable explicitly related to the measurement variable?	✓	✓

The boundary is not always absolute. A metadata convention often defines both:

structural rules, such as where an attribute must occur or how a related variable is referenced; and
semantic rules, such as what the permitted term means.

For example, the presence and location of a cell_methods attribute are structural. The distinction between time: point, time: mean, and time: sum is semantic.

A readable label is not yet a shared meaning

Variable names and free-text descriptions are useful, but they provide different levels of semantic precision.

Variable name

temp

The name is concise but ambiguous. It could refer to air temperature, sea-water temperature, surface temperature, potential temperature, a temperature anomaly, or even an instrument voltage that has not yet been converted.

Free-text label

long_name = "surface temperature"

A long_name helps human readers, but it is not normally constrained by a controlled vocabulary. Different producers may write:

surface temp
temperature at surface
skin temperature
ground temperature
SST

Software cannot safely assume that these labels are equivalent.

Controlled vocabulary term

standard_name = "air_temperature"

A controlled vocabulary provides an approved term with a documented definition. The term is more reliable because producers and consumers refer to the same vocabulary entry rather than inventing a local label.

Formally defined relationships

Meaning also depends on relationships among variables:

temperature:coordinates = "height latitude longitude"
temperature:ancillary_variables = "temperature_qc temperature_uncertainty"
temperature:cell_methods = "time: mean"

These relationships state which coordinates, quality information, uncertainty data, and statistical processing apply to the variable.

Controlled vocabularies, code lists, and ontologies

These concepts are related but should not be treated as synonyms.

Semantic resource	Purpose	Example
Free-text label	Human-readable description without controlled meaning	`long_name = "radar velocity"`
Controlled vocabulary	Approved terms with definitions and governance	CF Standard Name Table
Code list	Permitted values or codes for a particular field	CF calendar values; WMO parameter codes
Taxonomy or thesaurus	Concepts organised through broader, narrower, or related links	A domain thesaurus represented using SKOS
Ontology	Formal concepts, properties, and relationships that may support logical reasoning	An RDF/OWL model connecting observations, instruments, quantities, and methods

The CF Standard Name Table is a controlled vocabulary. It defines standard names, descriptions, and canonical units. It is not, by itself, a full ontology of climate science.

A semantic resource is more useful when:

its terms have stable identifiers;
definitions are publicly accessible;
versions and changes are documented;
synonyms and deprecated terms are managed;
relationships between concepts are explicit where needed; and
the resource is maintained through an open community process.

This aligns with the FAIR Interoperability principles: data and metadata should use formal, shared knowledge-representation languages, FAIR vocabularies, and qualified references to related data and metadata.

Callout

Relevant resource: EarthPortal

EarthPortal is a catalogue and repository for ontologies and other semantic artefacts in Earth-system, environmental, and related domains. It can help researchers, data stewards, and infrastructure developers move beyond locally invented labels by discovering semantic resources that may already exist in their community.

EarthPortal provides several ways to explore and evaluate semantic artefacts:

Browse the ontology catalogue and filter resources by Earth-science category, group, language, representation format, or semantic-resource type.
Search ontology content to find concepts across multiple ontologies rather than searching only by ontology title.
Use the Recommender to identify potentially relevant ontologies from a sample of terms or text.
Use the Annotator to identify ontology concepts that may describe terms occurring in documentation or metadata.
Inspect mappings, identifiers, classes, properties, provenance, submissions, and available machine-readable representations.
After creating an account and signing in, use Submit ontology to share an ontology or another semantic artefact with the wider Earth-science community.

Publishing a semantic artefact in a catalogue can improve its visibility and reuse, but catalogue inclusion is not by itself evidence that the resource is authoritative, current, adequately licensed, or appropriate for a particular dataset. Before adopting a term or identifier, inspect:

who created and maintains the resource;
its scope and intended use;
licence and access conditions;
version and modification history;
persistent namespace or concept identifiers;
governance and term-submission process;
mappings to other vocabularies; and
whether the relevant scientific community actively uses it.

Explore further: the Climate and Forecast ontology representation

EarthPortal includes the Climate and Forecast (CF) features ontology, an OWL representation of generic features derived from the CF Standard Names vocabulary. It exposes CF-related concepts through ontology classes, properties, individuals, identifiers, and relationships that can be explored programmatically or through the portal interface.

This resource illustrates the difference between:

the authoritative CF Standard Name Table, which governs the standard names used in CF-compliant datasets; and
an ontology representation, which expresses selected CF concepts and relationships in a formal knowledge-representation language.

The ontology representation may support linked-data exploration, mappings, semantic annotation, and integration with other ontologies. However, it should not automatically be treated as a replacement for the current CF Standard Name Table or the CF Conventions.

When exploring it, compare the portal entry with the authoritative CF resources and ask:

Does the concept correspond to a current CF standard name?
Is its definition identical to, derived from, or older than the current CF definition?
Is the concept represented as a class, property, or individual?
Which relationships have been made explicit in OWL?
Are provenance, licence, maintenance responsibility, and update frequency sufficiently clear?
Would referencing this ontology URI improve machine-actionable meaning in the intended workflow, or is the canonical CF term and definition the more appropriate reference?

A useful search exercise is to look for terms such as air_temperature, precipitation_flux, or radar-related quantities and compare what EarthPortal exposes with the current CF Standard Name Table.

Semantic interoperability is not provided by a file format

NetCDF, Zarr, CSV, TSV, Parquet, GeoTIFF, and other formats can all carry data that are semantically clear—or semantically ambiguous.

For example, a CSV table may contain:

station,time,RR
Cabauw,2026-07-14T08:00:00Z,0.3

The table is structurally simple, but RR remains ambiguous unless a schema or metadata record states:

the controlled concept represented by RR;
whether the value is precipitation amount, rainfall depth, or precipitation rate;
the unit;
the time interval;
whether the value is instantaneous, accumulated, averaged, or derived;
the station identifier and coordinate reference; and
how missing and quality-controlled values are represented.

A Parquet schema can define RR as a floating-point column, but a data type does not define the scientific quantity. A NetCDF variable can carry attributes, but the presence of attributes does not ensure that they use shared terms correctly.

The file format provides a place to encode meaning. A community convention supplies the semantic contract.

Semantic interoperability requires context, not only names and units

Consider two variables:

float temperature(time, latitude, longitude);
    temperature:standard_name = "air_temperature";
    temperature:units = "K";

and:

float tas(time, latitude, longitude);
    tas:standard_name = "air_temperature";
    tas:units = "degC";

The variable names differ, but the shared standard_name indicates the same physical quantity. Their units are convertible, so software can harmonise them.

However, this does not yet prove that the variables can be directly combined. Ash must still inspect:

the height or pressure level of the air temperature;
coordinate systems and locations;
time coordinates and calendars;
spatial and temporal resolution;
whether values are instantaneous or averaged;
cell bounds and aggregation intervals;
observation versus model context;
quality flags and uncertainty;
calibration and processing level; and
missing-data and validity rules.

Semantic interoperability establishes interpretable meaning and relationships. It does not automatically establish that two datasets are scientifically interchangeable or suitable for a particular analysis.

Callout

Semantic equivalence, convertibility, and comparability

These are different claims.

Equivalent: the variables represent the same defined concept under the same relevant context.
Convertible: values can be transformed between compatible representations, such as K and degC.
Comparable: the variables are sufficiently aligned in meaning, context, scale, resolution, processing, and quality for a stated scientific purpose.
Combinable: an explicit workflow can merge or jointly analyse them without introducing unacceptable assumptions.

The same standard_name may support semantic alignment, but it does not by itself guarantee comparability or combinability.

Challenge

Can these variables be compared? (Think–Pair–Discuss)

Consider the following variables.

Dataset A

standard_name = "air_temperature"
units = "K"
height = 2 m
cell_methods = "time: point"

Dataset B

standard_name = "air_temperature"
units = "degC"
height = 2 m
cell_methods = "time: mean"
time_bounds = one-hour intervals

Dataset C

standard_name = "surface_temperature"
units = "K"
cell_methods = "time: point"

Discuss:

Which pairs describe the same physical quantity?
Which units are convertible?
Which variables can be directly compared without further processing?
What harmonisation would be required?
Which information is semantic, and which is structural?

Show me the solution

Datasets A and B

They use the same standard name and refer to air temperature at the same height. Their units are convertible. However, Dataset A represents point values while Dataset B represents one-hour means. They should not be treated as directly equivalent until their temporal representation is harmonised—for example, by calculating comparable hourly means from Dataset A, if its sampling supports that operation.

Datasets A and C

Their units are compatible, but the standard names identify different quantities. air_temperature and surface_temperature must not be treated as synonyms.

Datasets B and C

The variables differ in physical quantity and temporal treatment, so unit conversion alone is insufficient.

Structural information

The existence and location of attributes, the link to time_bounds, and the shapes and dimensions of variables are structural.

Semantic information

The definitions of air_temperature, surface_temperature, time: point, time: mean, the height reference, and the interpretation of units are semantic.

Semantic interoperability through the CF Conventions

The Climate and Forecast (CF) Metadata Conventions define a community-governed metadata convention for describing climate, forecast, and related geoscientific data using the NetCDF data model.

CF combines structural and semantic rules. Its semantic contribution does not come from one attribute alone. Meaning is assembled from several connected elements.

`standard_name`: the physical quantity

A CF standard name is selected from the CF Standard Name Table.

Examples include:

air_temperature
sea_surface_temperature
precipitation_flux
precipitation_amount

Each standard name has:

an exact spelling;
a textual definition; and
a canonical unit expressing the expected physical dimensionality.

A file may use another compatible unit. For example, an air_temperature variable may use K or degC, provided the unit is valid and compatible with the standard name.

`long_name`: a human-readable description

long_name remains useful for more readable descriptions, but it does not replace standard_name.

long_name = "Hourly mean air temperature at 2 m"
standard_name = "air_temperature"

The first string is written for people. The second refers to a governed vocabulary term that software can validate.

`units`: representation and convertibility

CF uses unit strings compatible with UDUNITS. This allows software to check dimensional compatibility and convert between compatible units.

Units alone do not fully identify a quantity:

K could describe air temperature, sea-water temperature, soil temperature, or a temperature difference.
m s-1 could describe wind velocity, fall speed, platform velocity, or radial velocity.
kg m-2 could describe precipitation amount, snow mass, or another area-normalised mass quantity.

The standard_name defines the quantity; units define how its values are expressed.

Coordinates: where and when the quantity applies

CF defines rules for identifying latitude, longitude, vertical, and time coordinates. Coordinate metadata can establish:

geographic position;
time reference and calendar;
pressure, height, or depth;
positive direction;
auxiliary or two-dimensional coordinates; and
dimensionless vertical coordinates through formula_terms.

A variable without adequate coordinate semantics may be readable but impossible to place reliably in space or time.

Bounds: the extent represented by a coordinate

A coordinate value may represent a point or the centre of an interval. A bounds attribute links a coordinate to the lower and upper boundaries of its cells.

This matters because:

a timestamp may represent an instant or a one-hour interval;
a latitude may represent a grid-cell centre or an area extent; and
a vertical coordinate may represent a level or a layer.

`cell_methods`: how values were aggregated or derived

cell_methods records statistical treatment over coordinates or domains.

Examples:

cell_methods = "time: point"
cell_methods = "time: mean"
cell_methods = "time: sum"
cell_methods = "area: mean"
cell_methods = "time: maximum"

A precipitation amount accumulated over one hour and a precipitation flux averaged during that hour may be mathematically related, but they are not semantically identical. Correct conversion requires the interval, bounds, and method.

Grid mappings: the spatial reference system

For projected or non-latitude/longitude grids, grid_mapping links a data variable to a grid-mapping variable containing the coordinate reference-system parameters.

A pair of numeric x and y arrays is not sufficient to locate data on Earth unless their spatial reference is defined.

Ancillary variables, flags, and uncertainty

The ancillary_variables attribute can link a measurement to closely associated information such as uncertainty or quality indicators.

Quality-control variables may use:

flag_values
flag_masks
flag_meanings

Without these relationships and code definitions, a value such as 2 in a quality column has no stable machine-actionable meaning.

Feature types and observation geometry

For time series, trajectories, profiles, and other discrete sampling geometries, CF can declare a featureType and prescribe how observations, stations, trajectories, profiles, and coordinates relate.

This allows tools to distinguish, for example, a station time series from a gridded field even when both are stored in NetCDF.

CF is a convention, not a complete description of every research context

CF is powerful, but CF compliance does not guarantee:

that the scientific values are correct;
that calibration or processing was appropriate;
that uncertainty is adequately described;
that all provenance is available;
that discovery metadata are complete;
that two datasets use the same spatial or temporal resolution;
that two variables are suitable for the same research question;
that missing values are acceptably limited; or
that a dataset is free from software or production errors.

Other standards and metadata profiles may complement CF. For example:

dataset-discovery metadata may be expressed through ACDD, ISO 19115, DataCite, or repository metadata;
instruments and observation procedures may require domain-specific vocabularies or provenance models;
WMO code tables support operational meteorological exchange; and
persistent identifiers can connect datasets to instruments, software, methods, publications, and derived products.

Semantic interoperability is therefore layered. CF provides an important domain convention, not the totality of scientific meaning.

Community governance and semantic stability

Shared meaning requires more than publishing a list of terms once. A vocabulary or convention needs:

documented definitions;
versioning and change histories;
procedures for proposing new terms;
review by domain experts and implementers;
management of aliases and deprecated terms;
publicly accessible machine-readable representations; and
implementation and validation across multiple tools.

The CF community maintains the convention and controlled vocabularies through an open process. The current standard-name vocabulary is versioned independently from the CF Conventions document. This separation allows new scientific quantities to be added without requiring a complete new release of the convention.

A dataset should therefore identify the convention version it follows and, where relevant, the vocabulary version used.

Challenge

Semantic interoperability: True or False?

Indicate whether each statement is True or False, and justify your answer.

A NetCDF file with dimensions, variables, and units is semantically interoperable by default.
CF standard names allow software to distinguish different kinds of temperature.
Semantic interoperability mainly benefits human readers, not automated workflows.
Two datasets using the same CF standard name can always be compared directly without further interpretation.
Semantic interoperability can be achieved reliably through locally invented variable names, without community-agreed definitions.
A descriptive long_name has the same machine-actionable status as a valid CF standard_name.
Passing a compliance checker proves that a dataset is scientifically correct and fully interoperable.
Variables expressed in K and degC may be convertible while still requiring additional contextual harmonisation.

Show me the solution

False. NetCDF provides a self-describing structure, but dimensions and units do not fully define scientific meaning, context, statistical treatment, or relationships.
True. CF standard names distinguish concepts such as air_temperature, sea_surface_temperature, and surface_temperature through controlled terms and definitions.
False. Shared semantics enable automated discovery, validation, unit conversion, subsetting, comparison, and integration.
False. A shared standard name is strong evidence that variables represent the same physical quantity, but direct comparison still depends on coordinates, units, heights or depths, cell methods, bounds, resolution, quality, provenance, and processing context.
False. Local names may be understandable within one project, but reliable interoperability requires mappings to shared definitions, vocabularies, or identifiers.
False. long_name is normally free text. A CF standard_name must be selected from the governed Standard Name Table and has a defined meaning and canonical unit.
False. A checker evaluates implemented conformance rules. It does not verify scientific correctness, data quality, completeness of all relevant metadata, or suitability for a specific analysis.
True. Unit conversion may be possible, but the variables may still differ in height, aggregation, calendar, coordinate system, processing level, or measurement method.

What does CF-compliant mean?

A NetCDF file is CF-compliant relative to a declared CF version when it satisfies the requirements of that version and uses CF terms according to their defined meanings.

For example:

:Conventions = "CF-1.13";

The global Conventions attribute is a declaration by the data producer. It is not proof by itself. A file may declare a convention while still containing invalid standard names, incompatible units, missing coordinate metadata, or incorrectly expressed relationships.

CF documents distinguish between:

requirements, which must be satisfied for conformance; and
recommendations, which improve interoperability but are not always mandatory.

A compliance assessment should therefore report:

the CF version claimed by the file;
the CF version against which it was evaluated;
requirements that fail;
recommendations that are not followed;
warnings or implementation limitations; and
which checker and checker version produced the report.

Callout

Compliance is version-specific

A file written for an older CF version should ideally be evaluated against that version. Running a newer checker may still reveal useful interoperability problems, but it does not retroactively determine whether the file conformed to every rule of its originally declared version.

Similarly, a checker may implement only part of a convention. The CF specification remains the authoritative source.

Inspecting semantic metadata in the IDRA radar files

The two IDRA files used in this lesson declare:

Conventions = "CF-1.4"

They contain useful structural and descriptive metadata, including time coordinates, units, long_name values, comments, and fill values. However, several radar data variables—such as:

equivalent_reflectivity_factor
differential_reflectivity
radial_velocity
spectrum_width
differential_phase

are primarily described through local variable names, free-text long_name values, units, and comments.

This creates useful questions for semantic assessment:

Does each local variable name correspond to a valid CF standard name?
If a matching standard name exists, is it recorded in the standard_name attribute?
Are units written in a valid and unambiguous UDUNITS form?
Does ms-1 express the intended velocity unit, or should it be written as m s-1 or m/s?
Are azimuth, elevation, range, and radar position represented through sufficient coordinate semantics?
Is the positive direction of radial velocity explicit?
Are measurement uncertainties or quality flags linked to the data variables?
Do the files provide enough metadata to distinguish point measurements, averages, and derived products?
Does declaring CF-1.4 accurately describe how all variables use the convention?

The purpose is not to conclude that the datasets are unusable. They are structurally similar and richly documented for human readers. The purpose is to identify which meanings are machine-actionable and which still depend on domain knowledge or free-text interpretation.

Challenge

Ash’s semantic-comparison checklist

Ash wants to compare equivalent_reflectivity_factor and radial_velocity between the 2009 and 2019 IDRA files.

Before combining the values, decide whether she has enough information to answer the following questions.

Question	Metadata element to inspect	Why it matters
Do both variables represent the same physical quantity?	`standard_name`, `long_name`, definition or vocabulary mapping	Similar local names are not proof of semantic equivalence
Are units valid and compatible?	`units`, canonical units, UDUNITS parsing	Strings that look similar may be invalid or ambiguous
Is the sign convention the same?	standard-name definition, comments, reference direction	Opposite sign conventions can reverse interpretation
Do values represent the same temporal treatment?	`cell_methods`, time bounds, sampling information	Point values and means are not equivalent
Are measurements located in the same coordinate frame?	range, azimuth, elevation, station position, CRS or grid mapping	Radar bins need spatial interpretation
Are missing and invalid values handled consistently?	`_FillValue`, `missing_value`, `valid_range`, quality flags	Invalid values must not enter comparisons
Are processing and calibration comparable?	`history`, provenance, processing-level metadata, instrument information	Identical names do not guarantee identical processing
Is uncertainty represented?	`ancillary_variables`, uncertainty variables, quality flags	Differences may be smaller than measurement uncertainty

Show me the solution

The two files use nearly identical variable names, dimensions, units, and comments, which strongly supports comparison using a shared workflow. However, semantic comparability should not be inferred from names alone.

Ash can establish more reliable comparability by:

validating or mapping the local radar variable names to controlled terms;
confirming unit syntax and compatibility;
documenting sign conventions and measurement geometry;
checking whether temporal and spatial sampling are equivalent;
comparing calibration, processing, and noise information;
applying missing-value and quality-control rules consistently; and
recording any assumptions made during harmonisation.

Try the IOOS Compliance Checker

The IOOS Compliance Checker is a Python-based tool that evaluates local or remote NetCDF datasets against implemented metadata standards, including selected versions of CF. Its source code and documentation are available through the IOOS Compliance Checker project.

The checker is useful for identifying potential conformance problems, but its own documentation states that it should be used as guidance rather than treated as the authoritative determination of complete compliance.

Important version issue for this exercise

The IDRA files declare CF-1.4. The current IOOS Compliance Checker documentation lists built-in CF checks for versions 1.6 through 1.11.

Therefore:

the checker cannot directly certify whether these files conform to CF-1.4;
checking against CF-1.6 or another supported version is a compatibility assessment against that selected version;
some findings may concern rules or recommendations introduced after CF-1.4; and
the report should be interpreted together with the declared convention version and the relevant CF specification.

Run the assessment

Open the IOOS Compliance Checker.
Inspect the file before running the checker and record its declaration:
```
Conventions = "CF-1.4"
```
Select an available CF test version. Prefer the earliest supported version, CF-1.6, for a relatively close compatibility assessment. Record the selected version explicitly.

Provide a direct remote OPeNDAP data URL, not a catalogue or HTML inspection page.

2009 dataset

https://opendap.4tu.nl/thredds/dodsC/IDRA/2009/04/27/IDRA_2009-04-27_06-08_raw_data.nc

2019 dataset

https://opendap.4tu.nl/thredds/dodsC/IDRA/2019/01/02/IDRA_2019-01-02_12-00_raw_data.nc

Do not use the catalogue page

https://opendap.4tu.nl/thredds/catalog/IDRA/2009/04/27/catalog.html?dataset=IDRA_scan/2009/04/27/IDRA_2009-04-27_06-08_raw_data.nc

Submit the dataset and download or save the report.
Classify each finding into one of the following categories:
- invalid or missing controlled-vocabulary term;
- invalid or incompatible unit;
- coordinate or reference-system problem;
- missing relationship between variables;
- missing statistical or interval context;
- recommendation for human-readable or discovery metadata;
- checker limitation or version mismatch.
Compare the reports for 2009 and 2019.

Interpretation questions

Which CF version does the dataset claim?
Which CF version did the checker actually evaluate?
Which findings are errors, and which are recommendations or warnings?
Which findings affect machine-actionable scientific meaning?
Which findings mainly affect discoverability or human documentation?
Are the reports identical because the files share a common production workflow?
Does a high score establish that the values are scientifically comparable?
Which issues would Ash prioritise before comparing the two years?
Which findings could be repaired by changing metadata only, and which require scientific or domain knowledge?

Key Points

Semantic interoperability concerns shared, explicit, and machine-actionable meaning.
File formats and readable labels provide containers for meaning but do not guarantee semantic agreement.
Catalogues such as EarthPortal support the discovery, assessment, mapping, and sharing of Earth-science semantic artefacts, but users must still evaluate authority, versioning, provenance, licensing, and community adoption.
Controlled vocabulary terms, units, coordinates, bounds, cell methods, grid mappings, flags, and qualified relationships work together to express scientific meaning.
A CF standard_name identifies a physical quantity; long_name remains free text for human readability.
The same standard name and convertible units are not sufficient to guarantee direct scientific comparability.
CF compliance is relative to a specific version and does not prove scientific correctness, data quality, or suitability for a particular analysis.
The global Conventions attribute is a conformance claim, not evidence that every requirement is satisfied.
Compliance checkers evaluate implemented rules and must be interpreted alongside the authoritative specification and domain knowledge.
The IDRA files are structurally similar and well documented for human readers, but some radar semantics may still require controlled mappings, clearer unit syntax, measurement-context metadata, and provenance.
Semantic interoperability is achieved through community-agreed definitions, stable identifiers, explicit relationships, and transparent harmonisation—not through variable names alone.

Content from Technical interoperability: Data access protocols

Last updated on 2026-07-14 | Edit this page

Overview

Questions

What is technical interoperability?
What is the DAP (Data Access Protocol)?
How does OPeNDAP enable remote access without full download?
What happens when we open a remote NetCDF file using xarray.open_dataset()?
Why are streaming protocols essential for large-scale scientific workflows?

Objectives

By the end of this episode, learners will be able to:

Define technical interoperability in the context of scientific data infrastructures.
Explain how DAP enables interoperable machine-to-machine data access.
Access a remote NetCDF dataset via OPeNDAP using Python.
Perform server-side subsetting of variables and dimensions.
Distinguish between metadata access and actual data transfer.

What is technical interoperability?

Technical interoperability concerns machine-to-machine communication.

A system is technically interoperable when independent systems can exchange and access data through standardized protocols without manual intervention.

If structural interoperability answers:

“Can I read this file?”

Technical interoperability answers:

“Can I access and exchange this data across systems in a scalable way?”

This layer operates below semantics.
It is about transport, protocol, and infrastructure.

Examples include:

HTTP
REST APIs
OPeNDAP
OGC services

In scientific data infrastructures, technical interoperability enables remote analysis workflows.

Why file download is not scalable

Large scientific datasets (climate reanalysis, ocean models, satellite archives) often reach:

Tens of gigabytes
Terabytes
Petabytes

Downloading entire files:

Is inefficient
Consumes bandwidth
Duplicates storage
Breaks reproducibility pipelines

Modern workflows require:

Remote access
Server-side filtering
On-demand subsetting
Integration into automated pipelines

This is where streaming protocols become essential.

DAP and OPeNDAP

The Data Access Protocol (DAP) is a protocol designed to enable remote access to structured scientific data.

OPeNDAP is a widely adopted implementation of DAP.

DAP allows:

Access to metadata without full download
Server-side slicing (e.g., select time range, variable subset)
Transmission of only requested data

In practice, this means:

You interact with a dataset hosted on a remote server as if it were local — but only the necessary data is transferred.

This is technical interoperability in action.

Hands-on: Accessing NetCDF via OPeNDAP in Python

We now move from concept to practice.

We will use:

xarray
A remote OPeNDAP endpoint
A NetCDF dataset hosted on a THREDDS server
Jupyter Lab

Step 1 – Open a remote dataset

Open Jupyter Lab and choose the appropiate environment of the lesson (see Setup)
Launch Jupyter Lab, open a terminal and type:

BASH


jupyter lab

Open a new notebook
Check installed libraries

PYTHON

import xarray as xr

Open a dataset

PYTHON


url = "https://opendap.4tu.nl/thredds/dodsC/IDRA/2019/01/02/IDRA_2019-01-02_12-00_raw_data.nc"

ds = xr.open_dataset(url,engine="pydap")

ds

Observe:

The dataset structure loads immediately.
Dimensions and metadata are visible.
The file has not been fully downloaded.

What happened?

Only metadata and coordinate information were accessed.

Step 2 – Select a variable

PYTHON

ds["spectrum_width"] # still no full download, just metadata

Step 3 – Perform server-side subsetting

Actual data transfer occurs
Now lets select a variable → “spectrum_width”, using positional indexing and we will take a 10×10 subset along two dimensions.

PYTHON


ds["spectrum_width"].isel(time_processed_data=slice(0,10),range=slice(0,10))

Now lets print the values of this subsetting

PYTHON


ds["spectrum_width"].isel(time_processed_data=slice(0,10),range=slice(0,10)).values # to print values in the scren

Slicing by the names of the dimensions

PYTHON


ds["spectrum_width"].sel(
    time_processed_data=slice("2019-01-02T12:00:00.000000000", "2019-01-02T12:00:02.097152173"),
    range=slice(0, 1000)
)

Using head

PYTHON


ds["spectrum_width"].head()
ds["spectrum_width"].head(time_processed_data=10)
ds["spectrum_width"].head(range=2)
ds["spectrum_width"].head(range=2).to_pandas() # tabular view

PYTHON


ds["spectrum_width"].isel(time_processed_data=0).values #one radar profile (1D slice)

ds["spectrum_width"].isel(range=1).values # One time series

Now actual data transfer occurs — but only for:

One variable
A limited time window

This is server-side subsetting enabled by DAP.

Step 4 Plotting a profile

PYTHON


import matplotlib.pyplot as plt

ds["spectrum_width"].isel(time_processed_data=0).plot()

ds["spectrum_width"].head(range=10).plot()

You have multiple equivalent ways to express the same operation:

.isel() → positional slicing (what you used) .sel() → coordinate-aware slicing .head() → quick inspection .values → raw data extraction .plot() → visual interpretation

Challenge

Technical interoperability — True or False?

Indicate whether each statement is True or False and justify your answer.

Opening a remote dataset with xarray.open_dataset() automatically downloads the entire file.
DAP enables server-side filtering before data transfer.
Streaming protocols replace the need for structural interoperability.
OPeNDAP works independently of file formats.
Technical interoperability enables automated workflows across infrastructures.

Show me the solution

False. Only metadata is accessed initially; data is transferred upon explicit selection.

True. Subsetting occurs on the server before transmission.

False. Technical interoperability depends on structural interoperability.

False. DAP operates on structured data models (e.g., NetCDF).

True. It enables scalable machine-to-machine access.

Callout

Demo: Can Ash combine two IDRA radar datasets?

Ash has found two IDRA radar files exposed through OPeNDAP:

IDRA_2009-04-27_06-08_raw_data.nc
IDRA_2019-01-02_12-00_raw_data.nc

Both files come from the same radar system and both are available remotely through OPeNDAP. At first, this suggests that they should be easy to compare. But before Ash can combine them, she needs to inspect whether they are structurally and semantically compatible.

In this demo, we will compare the two files using Python and xarray.

Questions

Can we open both datasets remotely without downloading the full files?
Do both datasets contain the same variables?
Do the key radar variables have the same dimensions and units?
Can we extract the same variable from both years?
Can we combine a selected variable into one analysis-ready object?
Why might we want to save this combined subset as Zarr?

Objectives

After this demo, learners should be able to:

open NetCDF files remotely through OPeNDAP;
inspect dimensions, variables, units, and metadata;
compare the structure of two related datasets;
select a common radar variable from both datasets;
create a small combined dataset for comparison;
detect and quantify missing values in each subset;
visualise and compare the selected radar variable across two years.
understand why Zarr can be useful for repeated or scalable analysis.

Setup

PYTHON

import xarray as xr
import pandas as pd
import matplotlib.pyplot as plt

We use the OPeNDAP data URLs, not the .html inspection pages.

PYTHON

url_2009 = "https://opendap.4tu.nl/thredds/dodsC/IDRA/2009/04/27/IDRA_2009-04-27_06-08_raw_data.nc"
url_2019 = "https://opendap.4tu.nl/thredds/dodsC/IDRA/2019/01/02/IDRA_2019-01-02_12-00_raw_data.nc"

To supress the warning when reading the file with pydap:

PYTHON

url_2009 = url_2009.replace("https://", "dap2://").replace("http://", "dap2://")
url_2019 = url_2019.replace("https://", "dap2://").replace("http://", "dap2://")

Step 1: Open the datasets remotely

PYTHON

ds_2009 = xr.open_dataset(url_2009,engine="pydap")
ds_2019 = xr.open_dataset(url_2019,engine="pydap")

PYTHON

ds_2009

PYTHON

ds_2019

At this point, Ash has not manually downloaded the full files. She is inspecting the datasets remotely through OPeNDAP.

Step 2: Inspect dimensions

PYTHON

ds_2009.dims

PYTHON

ds_2019.dims

Ash checks whether both files organise the data in a similar way. For example, she expects to see dimensions such as:

time_raw_data
sample_beat_signal
time_processed_data
range

This matters because variables can only be compared directly if their dimensions are compatible.

Step 3: Compare variable names

PYTHON

vars_2009 = set(ds_2009.data_vars)
vars_2019 = set(ds_2019.data_vars)

common_vars = sorted(vars_2009.intersection(vars_2019))
only_2009 = sorted(vars_2009.difference(vars_2019))
only_2019 = sorted(vars_2019.difference(vars_2009))

print("Common variables:")
print(common_vars)

print("\nOnly in 2009:")
print(only_2009)

print("\nOnly in 2019:")
print(only_2019)

This is Ash’s first interoperability check. If the files do not contain the same variables, she cannot simply reuse the same analysis code for both years.

Step 4: Inspect key radar variables

Ash focuses on a few processed radar observables:

PYTHON

radar_variables = [
    "equivalent_reflectivity_factor",
    "differential_reflectivity",
    "radial_velocity",
    "spectrum_width",
    "differential_phase",
]

PYTHON

for var in radar_variables:
    print(f"\nVariable: {var}")
    print("2009 dimensions:", ds_2009[var].dims)
    print("2019 dimensions:", ds_2019[var].dims)
    print("2009 units:", ds_2009[var].attrs.get("units"))
    print("2019 units:", ds_2019[var].attrs.get("units"))

This check helps Ash answer practical questions:

Does the same variable exist in both files?
Is it organised over the same dimensions?
Are the units the same?
Is the meaning of the variable described in metadata?

For example, equivalent_reflectivity_factor is a radar variable related to precipitation, but it is not the same as rainfall amount. It is usually expressed in dBZ, while rainfall amount may be expressed in units such as mm or mm h-1.

Step 5: Select one variable for comparison

Ash starts with equivalent_reflectivity_factor.

PYTHON

var = "equivalent_reflectivity_factor"

refl_2009 = ds_2009[var]
refl_2019 = ds_2019[var]

PYTHON

refl_2009

PYTHON

refl_2019

Now she checks whether both arrays use the same dimensions.

PYTHON

print(refl_2009.dims)
print(refl_2019.dims)

If both use time_processed_data and range, Ash can compare them more easily.

Step 6: Create a small subset

To keep the demo fast, Ash selects only the first few time steps and the first part of the range dimension.

PYTHON

subset_2009 = refl_2009.isel(time_processed_data=slice(0, 20), range=slice(0, 100))
subset_2019 = refl_2019.isel(time_processed_data=slice(0, 20), range=slice(0, 100))

This is an important practical benefit of OPeNDAP: Ash can request a subset of the remote data instead of downloading everything manually.

Step 6b: Check missing values in each subset (Optional)

Before combining the subsets, Ash checks whether the selected parts of the data contain many missing values.

This matters because a visual comparison can be misleading if one subset contains much less valid data than the other.

PYTHON

subset_2009 = subset_2009.load()
subset_2019 = subset_2019.load()

PYTHON

def missing_value_summary(data_array, label):
    total_values = data_array.size
    nan_values = int(data_array.isnull().sum().item())
    valid_values = total_values - nan_values
    nan_percentage = 100 * nan_values / total_values

    return {
        "subset": label,
        "total_values": total_values,
        "valid_values": valid_values,
        "nan_values": nan_values,
        "nan_percentage": round(nan_percentage, 2),
    }

PYTHON

nan_summary = pd.DataFrame(
    [
        missing_value_summary(subset_2009, "2009 subset"),
        missing_value_summary(subset_2019, "2019 subset"),
    ]
)

nan_summary

Ash can also add a simple warning threshold. Here, the threshold is set to 50%, but this is only a teaching choice.

PYTHON

nan_threshold = 50

nan_summary["interpretation"] = nan_summary["nan_percentage"].apply(
    lambda value: "High number of missing values" if value > nan_threshold else "Acceptable for this demo"
)

nan_summary

This check helps Ash avoid comparing two subsets blindly. If one year contains many more missing values than the other, the difference in the plots may reflect data availability rather than a real difference in the radar signal.

Step 7: Add a year coordinate and combine the subsets

Because the two files come from different dates, Ash first converts the selected time dimension into a simple relative index.

This means she compares the first 20 selected time steps from 2009 with the first 20 selected time steps from 2019.

PYTHON

subset_2009 = subset_2009.assign_coords(
    time_processed_data=range(subset_2009.sizes["time_processed_data"])
)

subset_2019 = subset_2019.assign_coords(
    time_processed_data=range(subset_2019.sizes["time_processed_data"])
)

PYTHON

subset_2009 = subset_2009.expand_dims(year=[2009])
subset_2019 = subset_2019.expand_dims(year=[2019])

PYTHON

combined = xr.concat([subset_2009, subset_2019], dim="year", join="outer")
combined

Ash now has one small combined object containing the same radar variable from two different years.

PYTHON

combined.name = "equivalent_reflectivity_factor"

combined_ds = combined.to_dataset()

combined_ds

Optional Checking for nan values after merging

PYTHON

nan_comparison = pd.DataFrame(
    [
        {
            "year": 2009,
            "nan_before_combining": int(subset_2009.isnull().sum().item()),
            "nan_after_combining": int(combined_ds[var].sel(year=2009).isnull().sum().item()),
        },
        {
            "year": 2019,
            "nan_before_combining": int(subset_2019.isnull().sum().item()),
            "nan_after_combining": int(combined_ds[var].sel(year=2019).isnull().sum().item()),
        },
    ]
)

nan_comparison["extra_nans_after_combining"] = (
    nan_comparison["nan_after_combining"] - nan_comparison["nan_before_combining"]
)

nan_comparison

Step 8: Plot the two years for comparison

Now Ash can make a visual comparison between the 2009 and 2019 subsets.

First, she plots the selected radar variable as a two-dimensional image, with range on one axis and time_processed_data on the other.

PYTHON

combined_ds[var].plot(
    x="range",
    y="time_processed_data",
    col="year",
    robust=True,
)

plt.suptitle("Equivalent reflectivity factor comparison: 2009 and 2019", y=1.05)
plt.show()

This plot helps Ash visually inspect whether the structure of the radar signal looks similar or different between the two selected files.

However, two-dimensional plots can be difficult to compare in detail. Ash can also reduce each subset to a simple profile by averaging over time.

PYTHON

mean_over_time = combined_ds[var].mean(dim="time_processed_data", skipna=True)

mean_over_time.plot.line(
    x="range",
    hue="year",
)

plt.title("Mean equivalent reflectivity factor over range")
plt.ylabel(combined_ds[var].attrs.get("units", "value"))
plt.show()

This plot shows how the average value of the selected radar variable changes across the range dimension for each year.

Ash can also average over range and compare how the signal changes across the selected time steps.

PYTHON

mean_over_range = combined_ds[var].mean(dim="range", skipna=True)

mean_over_range.plot.line(
    x="time_processed_data",
    hue="year",
)

plt.title("Mean equivalent reflectivity factor over selected time steps")
plt.ylabel(combined_ds[var].attrs.get("units", "value"))
plt.show()

These plots are not a full scientific analysis. They are a first exploratory comparison that helps Ash understand whether the two datasets can be handled with a shared workflow.

Step 9: Add useful metadata

PYTHON

combined_ds.attrs["title"] = "Small combined IDRA reflectivity subset for interoperability demo"
combined_ds.attrs["source_datasets"] = "IDRA OPeNDAP files from 2009-04-27 and 2019-01-02"
combined_ds.attrs["purpose"] = "Demonstration of remote access, variable inspection, subsetting, and combination"
combined_ds.attrs["warning"] = (
    "This is a small teaching subset. It is not a complete scientific rainfall or drizzle analysis."
)

This step shows learners that combining data is not only a technical operation. Ash also needs to preserve enough metadata to explain where the data came from and what processing decisions were made.

Step 10: Save the combined subset as Zarr

For repeated analysis, Ash may want to store the small combined subset in a format that is efficient for chunked, cloud-friendly access.

PYTHON

combined_ds.to_zarr("idra_reflectivity_subset.zarr", mode="w")

Later, she can reopen it directly:

PYTHON

reopened = xr.open_zarr("idra_reflectivity_subset.zarr")
reopened

This creates a small analysis-ready version of the subset. Instead of repeating the same remote access and harmonisation steps every time, Ash can reuse the prepared Zarr version in later notebooks or workflows.

Discussion

This demo shows three different interoperability layers.

First, technical interoperability: OPeNDAP allows Ash to access the files remotely and subset the data programmatically.

Second, structural interoperability: NetCDF exposes dimensions, variables, coordinates, and attributes in a predictable structure.

Third, workflow interoperability: Zarr allows Ash to store a prepared subset in a chunked format that can be reopened and reused in later analysis.

However, the demo also shows that interoperability is not automatic. Ash still has to inspect the variables, units, dimensions, coordinates, metadata, and provenance before deciding whether the datasets can be compared safely.

Key Points

Technical interoperability enables machine-to-machine data exchange through standardized protocols.
OPeNDAP implements the DAP protocol for remote access to structured scientific datasets.
Remote datasets can be explored without full download.
Server-side subsetting reduces bandwidth and supports scalable workflows.
Streaming protocols transform data repositories into interoperable computational infrastructure.

Content from Technical interoperability: API

Last updated on 2026-07-14 | Edit this page

Overview

Questions

What is technical interoperability in research data infrastructures?
What is a REST API?
How do APIs enable machine-to-machine workflows?
How do APIs depend on structural and semantic interoperability?
How can we programmatically manage datasets using the 4TU.ResearchData API?

Objectives

By the end of this episode, learners will be able to:

Define APIs as mechanisms of technical interoperability.
Explain core REST concepts (HTTP methods, endpoints, JSON, authentication).
Interact with a repository API using curl.
Create and manage dataset metadata programmatically.
Understand the lifecycle of API-driven data publication.

Technical interoperability and APIs

Technical interoperability concerns how systems communicate.

While structural interoperability ensures that data follow predictable formats (e.g. NetCDF arrays and dimensions) and semantic interoperability ensures shared meaning (e.g. CF conventions), technical interoperability ensures that software systems can reliably exchange data and metadata without human intervention. In practice, technical interoperability is achieved through standardized protocols, of which APIs are the most prominent example.

An API (Application Programming Interface) defines how one system can request services or data from another system in a precise, machine-readable way.

APIs enable:

Automated data retrieval
Programmatic publication of datasets
Distributed processing pipelines
Machine-to-machine workflows
Cross-institutional integration of infrastructures

Then:

APIs operationalize technical interoperability.

REST APIs: core concepts

A REST API is an application programming interface (API) that conforms to the design principles of the representational state transfer (REST) architectural style, a style used to connect distributed hypermedia systems. REST APIs are sometimes referred to as RESTful APIs or RESTful web APIs.

Most modern research data infrastructures expose REST APIs, which rely on widely adopted web standards.

An API defines:

Endpoints (resources)
Methods (actions)
Representations (JSON)
Authentication (identity)

In the case of repositories, APIs transform repositories from storage platforms into programmable infrastructure.

Key concepts include:

HTTP as the transport protocol (HTTP- HyperText Transfer Protocol)
JSON as a structured, machine-readable representation of metadata (JSON- JavaScript Object Notation)
Stable identifiers for datasets and resources
Versioning to support long-term reuse and evolution of services
Self-describing endpoints, where responses contain sufficient metadata to be interpreted by machines
REST methods:
- GET – retrieve data or metadata
- POST – create new resources
- PUT / PATCH – update existing resources
- DELETE – remove resources

Relation to structural and semantic interoperability

APIs do not operate in isolation. APIs depend on structural interoperability: JSON responses must follow well-defined schemas.

APIs depend on semantic interoperability: Metadata fields, vocabularies, and controlled terms ensure that machines interpret content consistently.

Without structural and semantic agreement, an API may be technically functional but scientifically meaningless.

Relevance of APIs for climate and atmospheric sciences

Climate and atmospheric research is inherently computational and distributed:

Data volumes are large and continuously growing
Analyses are increasingly automated
Workflows span institutions, models, sensors, and repositories
Reproducibility requires programmatic access

APIs make it possible to build end-to-end interoperable workflows, from data acquisition to publication and reuse, without manual intervention.

Challenge

API : True or False?

An API guarantees semantic interoperability.
A REST API always uses JSON.
HTTP methods correspond to resource operations.
Without stable identifiers, APIs break reproducibility.
APIs replace the need for structured data formats.

Show me the solution

False — semantics depend on shared vocabularies.

False — JSON is common but not required.

True.

False — APIs depend on structure.

Hands on 4TU.ResearchData REST API

The 4TU.ResearchData repository provides a REST API that allows programmatic access to its datasets and metadata. This enables researchers to integrate data publication and retrieval into their automated workflows.

The documentation for the 4TU.ResearchData REST API can be found at: https://djehuty.4tu.nl/

Query datasets using the 4TU.ResearchData API

Get datasets or software deposited in 4TU (via curl)

BASH


curl -X GET "https://data.4tu.nl/v2/articles"  | jq

What is curl?

curl stands for Client URL.

It’s a command-line tool that allows you to transfer data to or from a server using various internet protocols, most commonly HTTP and HTTPS.

It is especially useful for making API requests — you can send GET, POST, PUT, DELETE requests, upload or download files, send headers or authentication tokens, and more.

Why curl works for APIs

REST APIs are based on the HTTP protocol, just like websites. When you visit a webpage, your browser sends a GET request and displays the HTML it gets back. When you use curl, you do the same thing, but in your terminal. For example:

curl https://data.4tu.nl/v2/articles This sends an HTTP GET request to the 4TU.ResearchData API.

Key reasons why curl is used:

It’s built into most Linux/macOS systems and easily installable on Windows.

Scriptable: usable in bash scripts, notebooks, automation.

Supports headers, query parameters, tokens, POST data, etc.

Can output to files (>, -o, -O) or pipe to processors like jq.

How to download a specific file using `curl`

Command	Behavior
`curl URL`	Prints file to screen (no saving)
`curl -O URL`	Downloads and saves with original name
`curl -o filename URL`	Downloads and saves with custom name
`curl -L -O URL`	Follows redirects and saves file
`curl -C - -O URL`	Resumes an interrupted download

Add parameters to the same endpoint to filter results

Open the documentation: https://djehuty.4tu.nl/ (in-development)

Challenge

Practicing API calls with `curl`

Show in the terminal the metadata of 2 datasets published since May 1st 2025 using curl and jq to format the output.
Save the information of 2 datasets published since May 1st 2025 using curl to a file called data.json in the current directory.
Show in the screen the metadata of 10 software published since January 1st 2025.

Show me the solution

BASH


curl "https://data.4tu.nl/v2/articles?limit=2&published_since=2025-05-01" | jq

curl "https://data.4tu.nl/v2/articles?limit=2&published_since=2025-05-01" > data.json

curl "https://data.4tu.nl/v2/articles?item_type=9&limit=10&published_since=2025-01-01" | jq

Get information per dataset ID

You get the dataset information by running the call to /v2/articles/uuid:

BASH


curl "https://data.4tu.nl/v2/articles/03c249d6-674c-47cf-918f-1ef9bdafe749" | jq

Get all the files per dataset ID

You get the dataset information by running the call to /v2/articles/uuid/files

BASH


curl "https://data.4tu.nl/v2/articles/03c249d6-674c-47cf-918f-1ef9bdafe749/files" | jq

Search Datasets by Keyword

BASH


curl --request POST  --header "Content-Type: application/json" --data '{ "search_for": "atmospheric" }' https://data.4tu.nl/v2/articles/search | jq

BASH


curl --request POST  --header "Content-Type: application/json" --data '{ "search_for": "netcdf" }' https://data.4tu.nl/v2/articles/search | jq

The 4TU.ResearchData API also supports the creation, the metadata update , the file upload and submission for review tasks. For more information visit the documentation page djehuty.4tu.nl

Key Points

APIs operationalize technical interoperability by enabling standardized machine-to-machine interaction.
REST APIs use HTTP methods, predictable endpoints, JSON representations, stable identifiers, and authentication mechanisms.
APIs depend on structural interoperability (schemas) and semantic interoperability (controlled vocabularies).
Command-line tools such as curl provide direct access to API functionality and enable automation.
The 4TU.ResearchData API supports full dataset lifecycle management: discovery, creation, metadata update, file upload, and submission for review.

Content from Cloud-Native Layouts

Last updated on 2026-03-30 | Edit this page

Overview

Questions

What does “cloud-native” mean in the context of scientific data?
Why can NetCDF struggle in cloud environments?
How is Zarr different from NetCDF?
Which part of interoperability is affected by cloud-native layouts?

Objectives

Explain what makes a data format cloud-native.
Compare NetCDF and Zarr from a cloud-access perspective.
Identify how cloud-native layouts influence structural interoperability.
Create a virtual Zarr dataset from NetCDF using Kerchunk.

Cloud-Native Layouts

What Does “Cloud-Native” Mean?

Cloud-native data layouts are designed for:

Object storage (e.g., S3-compatible systems)
Access over HTTP
Parallel reads
Loading only the pieces of data you need (lazy access)

In climate science, datasets such as:

ERA5 (ECMWF reanalysis dataset)
CMIP6 (climate model intercomparison dataset)

are often terabytes to petabytes in size.

Typical workflows include:

Reading a single variable
Selecting one time slice
Extracting a spatial subset
Repeating this many times (e.g., for machine learning)

A cloud-native layout makes these repeated small reads efficient.

NetCDF vs Zarr (Cloud Perspective)

NetCDF

NetCDF (Network Common Data Form) is a widely used scientific data format.

Designed for:

HPC systems
Large files on shared storage
Sequential or file-based access

In the cloud:

Stored as a single binary file
Harder to parallelize over HTTP
Repeated slicing can be inefficient

NetCDF provides strong structural interoperability in traditional computing environments,
but it is not optimized for object storage systems.

Zarr

Zarr is a chunked, cloud-optimized array storage format.

Designed for:

Object storage
Many small chunks
Parallel HTTP access

Data is stored as:

Small chunk files
JSON metadata
A directory-like structure compatible with object storage

Advantages in the cloud:

Read only the chunks you need
Many workers can read simultaneously
Efficient for repeated slicing

Zarr is considered cloud-native because it:

Reduces unnecessary data movement
Enables scalable parallel processing
Supports interactive analysis of very large datasets

What changes in Interoperability?

Cloud-native layouts mainly affect structural interoperability.

They change:

How data is physically organized
How it is accessed
How scalable it is

They do not automatically change:

Variable names
Units
Coordinate conventions

That belongs to semantic interoperability, which still relies on:

CF conventions
Agreed metadata standards

So:

NetCDF → structural interoperability (file-based)
Zarr → structural interoperability (cloud-native)

Both can support semantic interoperability, but only if metadata conventions are respected.

Converting a dataset from file-based to cloud-native (hands-on session)

In this session, we will use Kerchunk to create a virtual Zarr dataset from an existing NetCDF file.

This allows us to access the dataset in a cloud-native way without modifying or copying the original data.

NetCDF → Virtual Zarr with Kerchunk

Goal

Create a cloud-native representation of an existing NetCDF file
without rewriting or duplicating the data.

What is Kerchunk?

Kerchunk creates a virtual Zarr dataset from existing formats such as NetCDF or HDF5.

Instead of converting data, Kerchunk:

Reads the original file structure
Maps byte ranges to Zarr-style chunk references
Writes a small JSON reference file

Result:

The original file remains unchanged
The JSON acts as a reference layer
No data duplication
No heavy conversion
Immediate cloud-compatible access

Different ways of accessing remote data

Approach	What happens	Who does the work
OPeNDAP	Server interprets the dataset and sends subsets	Server
Kerchunk	Client reconstructs dataset structure and reads chunks directly	Client

Step 1: Create a Kerchunk reference

Open JupyterLab in your project folder
Continue in your notebook or create a new one

PYTHON

import json
from kerchunk.netCDF3 import NetCDF3ToZarr

In this step, we are not converting data. We are creating a JSON file that describes how to access the data.

We are transforming how data is accessed, not the data itself.

PYTHON

# Direct file endpoint (raw file access, not OPeNDAP)
file_url = "https://opendap.4tu.nl/thredds/fileServer/IDRA/2019/01/02/IDRA_2019-01-02_12-00_raw_data.nc"

# Inspect the NetCDF file and build a mapping:
# Zarr chunks → byte ranges in the original file
ref = NetCDF3ToZarr(file_url, inline_threshold=100).translate()

# Save the mapping as JSON (no data stored here)
with open("idra_ref.json", "w") as f:
    json.dump(ref, f)

Step 2: Open as a virtual Zarr dataset

xarray behaves as if it is reading a Zarr dataset, but data is still coming from the original NetCDF file.

PYTHON

import xarray as xr

# Kerchunk reads metadata locally from the JSON file, and retrieves data lazily from the original remote file only when needed.
ds_ref = xr.open_dataset(
    "idra_ref.json",
    engine="kerchunk",
    storage_options={
        "remote_protocol": "https",
        "remote_options": {
            "asynchronous": True,
        },
    },
)

ds_ref

Step 3: Inspect structure and metadata

The semantics remain the same.

PYTHON

ds_ref.dims
ds_ref.variables
ds_ref.attrs

Only the access pattern has changed, not the data meaning.

Step 4: Perform lazy slicing

PYTHON

# Select a subset (only required chunks are accessed)
subset = ds_ref.isel(time_raw_data=0)

subset

No full dataset is loaded
Only relevant chunks are accessed
Access is lazy and chunk-based

Conceptual comparison

Feature	OPeNDAP	Kerchunk
Access type	Protocol-based	Storage-based
Endpoint	`/dodsC/`	`/fileServer/`
Who interprets data	Server	Client
Data model	File-oriented	Chunk-oriented
Scalability	Limited by server	Scales with client + cloud
Parallel access	Limited	Natural (chunk-based)
Reusability	Low	High (JSON reusable)
Setup complexity	Low	Medium
Performance	Server + network dependent	Chunk-wise, parallel access

When to use what?

Use OPeNDAP when:

You want quick remote access
You rely on existing data services (e.g., THREDDS)
You are doing exploratory analysis
You do not control data storage

Typical use: browsing datasets, small analyses

Use Kerchunk when:

You want cloud-native workflows
You need scalable or parallel processing
You work with large datasets
You integrate with:
- zarr
- dask
- object storage (S3, etc.)

Typical use: large-scale analysis, pipelines, reproducible workflows

Key Points

Cloud-native layouts are optimized for object storage and HTTP access.
NetCDF works well on HPC systems but is not optimized for cloud-native environments.
Zarr stores data in chunks, enabling efficient parallel access.
Kerchunk enables cloud-native access to NetCDF without data duplication.
Kerchunk changes the access pattern, not the data itself.
Cloud-native layouts affect structural interoperability, while semantic interoperability depends on metadata standards such as CF conventions.

Content from Interoperable Infrastructure in the AI Era

Last updated on 2026-04-07 | Edit this page

Overview

Questions

What does “AI-ready” mean in the context of climate data infrastructures?
Why is interoperability a prerequisite for trustworthy AI?
Which infrastructural components enable AI at scale?

Objectives

Explain what makes a data infrastructure AI-ready.
Connect AI requirements to structural, semantic, and technical interoperability.
Identify infrastructural components that enable scalable and reproducible AI workflows.

Why talk about AI in an interoperability course?

Artificial Intelligence and machine learning are increasingly applied to:

Climate simulations
Earth observation data
Extreme event prediction
Downscaling and bias correction
Environmental monitoring

However, AI systems do not operate on raw data alone.
They depend on infrastructure , and that infrastructure must be interoperable.

Without interoperability, AI pipelines become:

Fragile
Non-reproducible
Difficult to scale

At its core, AI requires machine-actionable data ecosystems.

What does AI need from data infrastructure?

AI workflows in climate science typically require:

1. Large-scale multidimensional datasets

NetCDF or Zarr
High spatial and temporal resolution
Petabyte-scale archives

2. Consistent semantic metadata

CF-compliant variables
Clear units
Well-defined coordinate systems
Machine-readable descriptions

3. Cloud-native, chunked access

Efficient partial reads
Parallel loading
Compatibility with distributed compute

4. Discoverability

Structured catalogs
STAC-like metadata
Searchable and filterable resources

5. Stable programmatic access

Well-documented REST APIs
Persistent identifiers
Versioned datasets

AI systems are not just consumers of data.
They are automated pipelines that depend on consistency across all layers.

Typical challenges

Many repositories were not designed with AI in mind. Common obstacles include:

Data fragmentation across portals
Non-standard variable naming
Missing or inconsistent metadata
Download-only workflows (no API access)
Lack of dataset versioning
Poor documentation

These issues break:

Automation
Reproducibility
Cross-dataset integration

Exercise 1 — Think–Pair–Discuss (5 min)

Discussion

Challenge

You are designing an AI model to predict extreme rainfall events using multiple datasets from different repositories.

Think (1 min):
What could go wrong if the datasets are not interoperable?

Pair (2 min):
Compare your answers with a partner. Identify:

One structural issue
One semantic issue
One technical issue

Discuss (2 min):
Share examples with the group.

Show me the solution

Typical issues include:

Structural: incompatible formats (NetCDF vs CSV vs proprietary formats)
Semantic: different variable names (precip, rainfall, tp) or inconsistent units
Technical: no API access, requiring manual downloads

These prevent automated pipelines and introduce hidden errors in AI models.

Key elements of an AI-ready interoperable infrastructure

An AI-ready infrastructure builds on three layers of interoperability:

Structural interoperability

Community formats (NetCDF, Zarr)
Cloud-native layouts
Chunked multidimensional storage

Semantic interoperability

CF conventions
Controlled vocabularies
Standard coordinate systems
Clear provenance metadata

Technical interoperability

REST APIs
STAC catalogs
Persistent identifiers (DOI, URIs)
Authentication mechanisms
Dataset versioning

When these layers align, AI systems can:

Discover datasets automatically
Load them efficiently
Interpret variables correctly
Combine sources consistently
Reproduce experiments

Exercise 2 — True or False (5 min)

Discussion

Challenge

Decide whether the following statements are True or False.

AI models only require large datasets; metadata is optional.
NetCDF files are automatically AI-ready without additional standards.
APIs are essential for scalable AI workflows.
Interoperability mainly affects data sharing, not AI performance.
Dataset versioning is important for reproducibility in AI.

Show me the solution

False — Metadata is critical for interpretation and correct model input.
False — Standards like CF conventions are needed for semantic clarity.
True — APIs enable automation and scalable access.
False — Interoperability directly impacts model reliability and integration.
True — Versioning ensures experiments can be reproduced.

Interoperability enables AI

Interoperability determines whether AI workflows are:

Efficient — scalable data loading and processing
Reproducible — same dataset, same version, same metadata
Integrable — multiple datasets combined coherently
Trustworthy — transparent provenance and standards

AI performance is not only about model architecture.
It is equally about data quality and infrastructure design.

Example: FAIR Earth Observation initiatives

Projects such as FAIR-EO (FAIR Open and AI-ready Earth Observation resources)
aim to align:

FAIR principles
Earth observation standards
AI-ready infrastructures

The focus is not just making data open, but making it machine-actionable at scale.

Key Points

AI-ready infrastructures require interoperable data layers.
Structural, semantic, and technical interoperability jointly enable AI workflows.
Cloud-native formats and consistent metadata are essential for scalable AI.
APIs, catalogs, identifiers, and versioning ensure reproducibility and automation.
AI reliability depends as much on infrastructure design as on model quality.

All in One View

Overview

Questions

Objectives

What is interoperability?

Assessing how interoperable a dataset is

Show me the solution

Identify the three layers of interoperability

Structural interoperability = representation

Semantic interoperability = meaning

Technical interoperability = access

References

Reflect back on the three guiding principles for interoperability (I1–I3)(Think-Pair-Discuss):

Show me the solution

True/False or Agree/Disagree with discussion afterwards

Show me the solution

Why to bother to make datasets interoperable?

Key elements of interoperable research workflows

Real world barriers to data interoperability and reuse (Think-Pair-Discuss)

Specific data challenges in the climate & atmospheric sciences

Discuss with you peer:

SH

Show me the solution

Overview

Questions

Objectives

What is structural interoperability?

Structural interoperability is a contract, not a file extension

A useful test: can the structure be validated?

Structural interoperability is about data models, not only formats

Tabular model

Multidimensional array model

Raster model

CSV and TSV: portable, but not automatically self-describing

Comparing structural formats for different data types

A richer container is not automatically more interoperable

Which structural contract is missing? (Think-Pair-Discuss)

Show me the solution

NetCDF: a data model for multidimensional scientific data

What NetCDF makes machine-actionable

What NetCDF does not guarantee by itself

Other structural standards in climate and atmospheric workflows

Zarr: chunked arrays across storage systems

Parquet: typed, column-oriented tables

GRIB2: operational meteorological fields

GeoTIFF and COG: georeferenced rasters

Identify the structural elements in a NetCDF dataset

Show me the solution

1. Global attributes

2. Dimensions

3. Coordinate variables

4. Example data variables and dimensions

5. Example data types

6. Missing-data attribute

7. Metadata stored as variables

Can Ash compare two radar files from different years?

Overview

Questions

Objectives

What is semantic interoperability?

Structure and meaning are different—but connected

A readable label is not yet a shared meaning

Variable name

Free-text label

Controlled vocabulary term

Formally defined relationships

Controlled vocabularies, code lists, and ontologies

Relevant resource: EarthPortal

Explore further: the Climate and Forecast ontology representation

Semantic interoperability is not provided by a file format

Semantic interoperability requires context, not only names and units

Semantic equivalence, convertibility, and comparability

Can these variables be compared? (Think–Pair–Discuss)

Dataset A

Dataset B

Dataset C

Show me the solution

Semantic interoperability through the CF Conventions

standard_name: the physical quantity

long_name: a human-readable description

`standard_name`: the physical quantity

`long_name`: a human-readable description

`units`: representation and convertibility

`cell_methods`: how values were aggregated or derived
